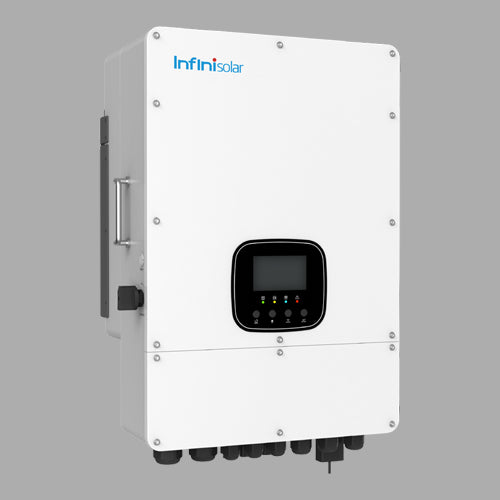

Infinisolar EU118-12KL3 Hybrid Inverter 12KW 48V 3-Phase IP65 ON/OFF Grid – PH1100 EU Series
2,961,000
Warranty: 3 years
Contact support
Pick a department — the chat opens with the product name and link ready.
Official warrantyAuthorised distributor
Delivery in 48hAll Iraqi provinces
Cash on deliveryPay when it arrives
Technical supportInstallation & maintenance
• Model: EU118-12KL3-EU
• Rated Power: 12000W
• Battery Type: Lead-acid / Lithium Battery
• Battery Voltage: 48V (Range: 40–60V)
• Maximum Charging/Discharging Power: 12000W
• Maximum Charging/Discharging Current: 240A
• Max. DC (PV) Input Power: 15600W
• Rated PV Input Voltage: 550V
• Maximum DC Voltage: 800V
• Start-up Voltage: 160V
• MPPT Voltage Range: 200–650V
• Maximum Input Current: 26A / 13A
• No. of MPP Trackers: 2
• No. of Strings per MPP Tracker: 2+1
• Rated AC Output Power: 12000W
• Max AC Output Power: 13200W
• AC Output Rated Current: 18.2 / 17.4A
• Rated Input/Output Voltage: 220/380V, 230/400Vac
• Rated Grid Frequency / Range: 50/60Hz; 45–55 / 55–65Hz
• Grid Type: Three Phase
• Total Harmonic Current Distortion (THDi): <3%
• Maximum Efficiency: ≥97.5%
• Euro Efficiency: 97.0%
• Machine Dimension (W*H*D): 444*654.2*259.2mm
• Protection Degree: IP65
• Installation Style: Wall-mounted
• Communication: Wi-Fi / USB / GPRS / RS485 / CAN
• Operating Temperature Range: -20°C to +60°C (>45°C derating)
• Net Weight: 35kg
