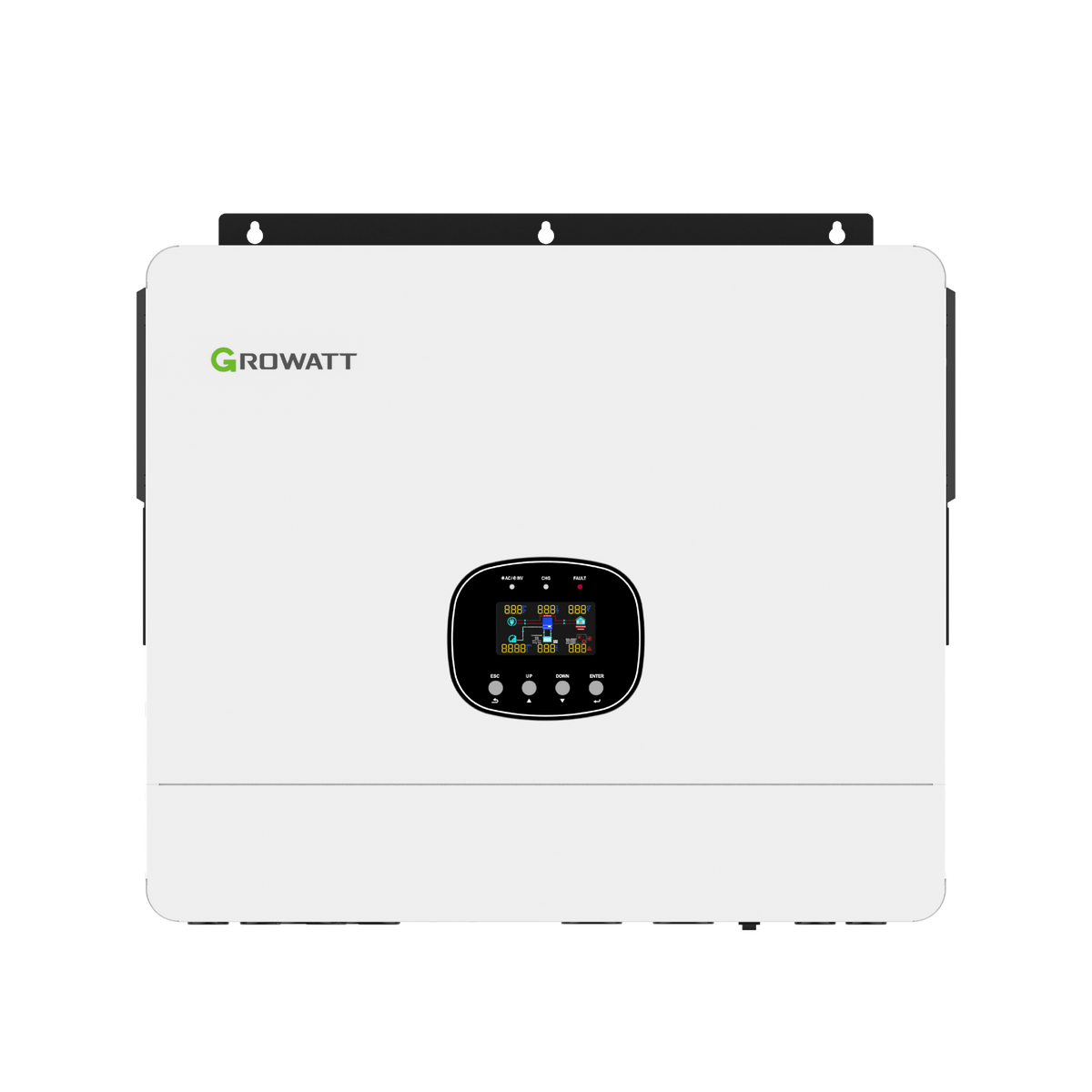

Growatt SPE 10000 ES Hybrid Solar Inverter – 10kW High Voltage Energy Storage Inverter
GROWATT

Growatt SPE 10000 ES 10kW Hybrid Solar Inverter

In stock SKU: t0573pk9000Type: Growatt inverter
1,481,000
Warranty: 2 years
Quantity
Official warrantyAuthorised distributor
Delivery in 48hAll Iraqi provinces
Cash on deliveryPay when it arrives
Technical supportInstallation & maintenance

The Growatt SPE 10000 ES is a 10kW single-phase hybrid inverter for a low-voltage battery system. Its nominal battery voltage is 48V; this is separate from the higher PV input voltage. Confirm the battery communication and solar-array design for your installation.

Compare Growatt inverters and solar batteries, or estimate your load with our solar calculator. See the manufacturer specifications for the SPE ES series.

• Model: SPE 10000 ES
• Maximum PV Power (for module STC): 12500W
• Max. DC Voltage: 550V
• Start Voltage: 120V
• MPP Voltage Range: 60V–480V
• No. of MPP Trackers: 2
• No. of PV Strings per MPP Tracker: 1
• Max. Input Current per MPP Tracker: 27A
• AC Nominal Power: 10000W
• Max. AC Apparent Power: 10000VA
• Nominal AC Voltage: 230V
• AC Grid Frequency: 50/60Hz
• Output Current: 43.5A
• Adjustable Power Factor: 0.8 leading…0.8 lagging
• THDi: < 5%
• Max. Conversion Efficiency (PV/AC): 96.5%
• European Efficiency @ nominal (PV/AC): 95.5%
• Nominal DC Voltage: 48V
• Max. Charging and Discharging Current: 220A/240A
• Type of Battery: Lithium/Lead-acid
• AC Nominal Output Power: 10000W
• Nominal AC Output Voltage: 230V
• Nominal AC Output Frequency: 50/60Hz
• Switch Time: <20ms @ Single / <30ms @ Parallel
• Peak Efficiency: 96.5%
• European Efficiency: 95.5%
• Operating Temperature Range: -10°C … +50°C
• Noise Emission (typical): <75dB
• Self-consumption: <75W
• Topology: Transformerless
• Cooling: DC fan
• Protection Degree: IP20
• Relative Humidity: 5%~95% non-condensing
• Altitude: <2000m
• Communication: WiFi/4G
• Certification: CE, NRS097
• Dimensions (W / H / D): 550/465/150mm
• Weight: 21.5kg
Growatt SPE 10000 ES 10kW Hybrid Solar Inverter PDF Download datasheet
