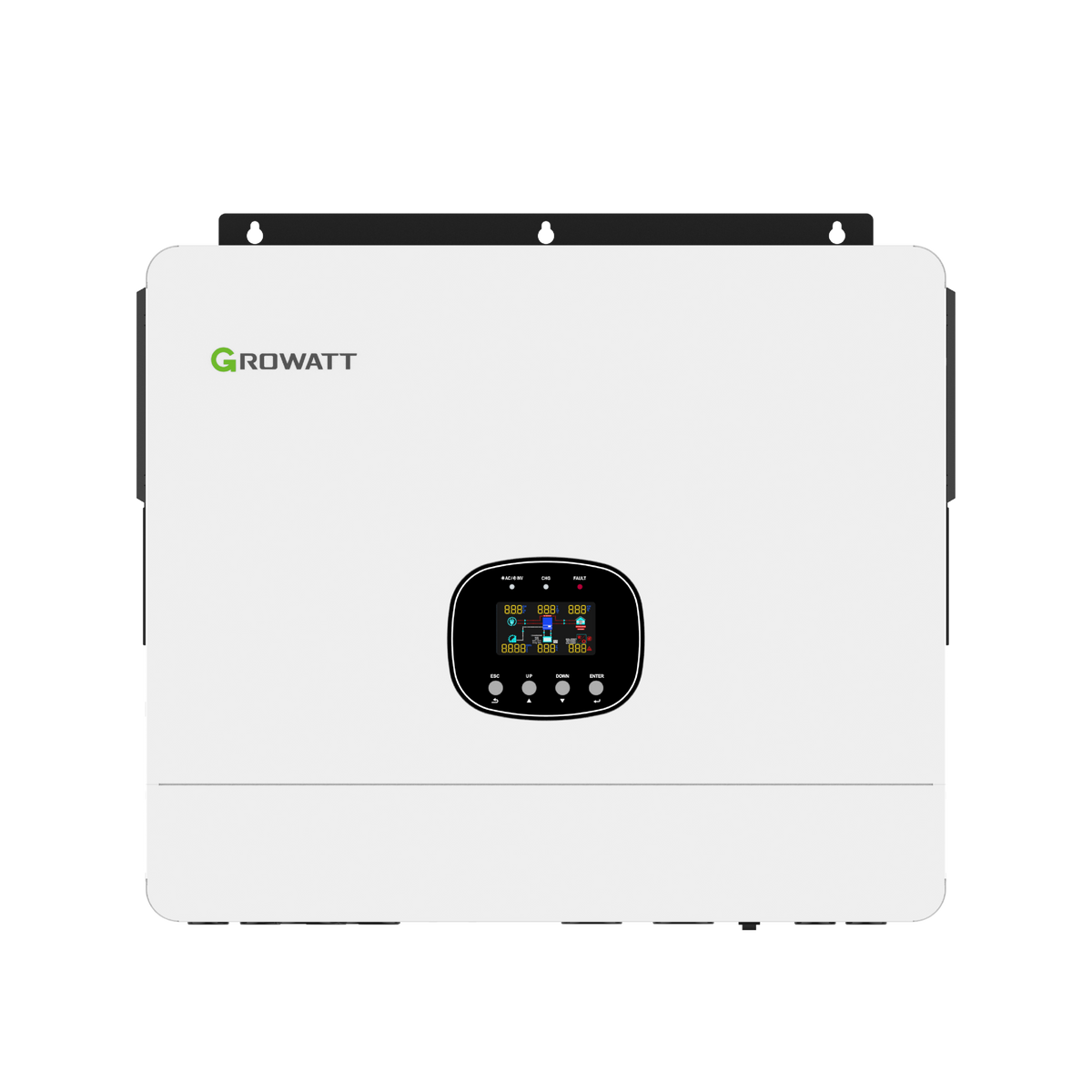

Growatt SPE 8000 ES Hybrid Solar Inverter – 8kW High Voltage Energy Storage Inverter

Inverter Specification

• Model: SPE 8000 ES
• Maximum PV Power (for module STC): 10000W
• Max. DC Voltage: 550V
• Start Voltage: 120V
• MPP Voltage Range: 60V–480V
• No. of MPP Trackers: 2
• No. of PV Strings per MPP Tracker: 1
• Max. Input Current per MPP Tracker: 27A
• AC Nominal Power: 8000W
• Max. AC Apparent Power: 8000VA
• Nominal AC Voltage: 230V
• AC Grid Frequency: 50/60Hz
• Output Current: 34.8A
• Adjustable Power Factor: 0.8 leading…0.8 lagging
• THDi: < 5%
• Max. Conversion Efficiency (PV/AC): 96.5%
• European Efficiency @ nominal (PV/AC): 95.5%
• Nominal DC Voltage: 48V
• Max. Charging and Discharging Current: 190A/200A
• Type of Battery: Lithium/Lead-acid
• AC Nominal Output Power: 8000W
• Nominal AC Output Voltage: 230V
• Nominal AC Output Frequency: 50/60Hz
• Switch Time: <20ms@Single / <30ms@Parallel
• Peak Efficiency: 96.5%
• European Efficiency: 95.5%
• Dimensions (W / H / D): 550/465/150mm
• Weight: 21.5kg
• Operating Temperature Range: -10°C … +50°C
• Noise Emission (typical): <75dB
• Self-consumption: <75W
• Topology: Transformerless
• Cooling: DC fan
• Protection Degree: IP20
• Relative Humidity: 5%~95% non-condensing
• Altitude: <2000m
• Communication: WiFi/4G
• Certification: CE, NRS097
