If you are comparing three-phase UPS products in Iraq, model E3MUPS100KHS deserves a look against your equipment or project requirements. This is a three-phase project UPS. It needs professional load, battery and installation planning rather than a choice based on kVA alone. This review uses the published Al-Nashir product listing, not an independent performance test.

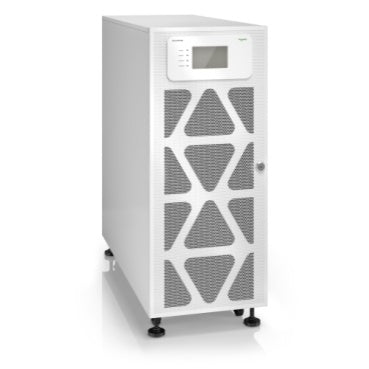

APC Easy UPS 3M E3MUPS100KHS 100kVA 400V 3-Phase UPS for External Batteries — 100kVA / 100kW. The listing describes an external or excluded battery configuration. Confirm the required batteries and their cost before comparing prices.
Who is this model for?
Start with the W rating, input supply, battery configuration and output outlets before choosing a VA class. If your voltage, capacity or compatibility needs differ from the specifications below, do not rely on the series name alone.
Listed specifications
- Model
- E3MUPS100KHS
- Capacity
- 100kVA / 100kW
- Topology
- Online double-conversion UPS with sine wave output
- Input and output
- 400V, 3-phase (3:3); 380V and 415V supported
- Battery
- External battery system required; no internal batteries included
- Protection
- Built-in static bypass and IP20 rating
- Input voltage range
- 342–477V
- Control panel
- Touchscreen LCD
- Included
- Dust filter, installation guide, and 5x8 start-up service
- Store warranty
- 12 months
Included accessories and final configuration may vary. Confirm the current product details before ordering.
Strengths and limitations
The listing describes an external or excluded battery configuration. Confirm the required batteries and their cost before comparing prices. Battery runtime cannot be derived from VA alone; request a runtime chart for your load.
Checks before buying in Iraq
- Obtain a three-phase load schedule and confirm the site voltage first.
- Plan batteries, runtime, equipment-room space and ventilation.
- Review wiring, bypass and maintenance requirements with a qualified engineer or contractor.
Is there a close alternative?

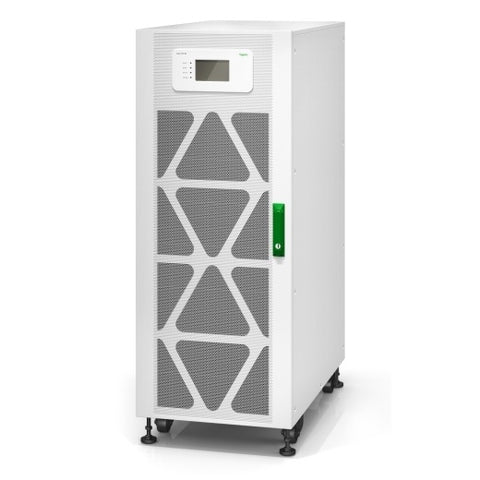

The nearby E3MUPS120KHS lists 120kVA / 120kW versus 100kVA / 100kW. That is only a starting point: compare capacity or dimensions, compatibility and connections too. View E3MUPS120KHS.
Product at Al-Nashir
View E3MUPS100KHS, current specifications and price →
Frequently asked question
Can I choose from the model name alone?
No. Calculate the load or check the required compatibility, voltage and connectors. For an electrical project, request a professional review before installation.
