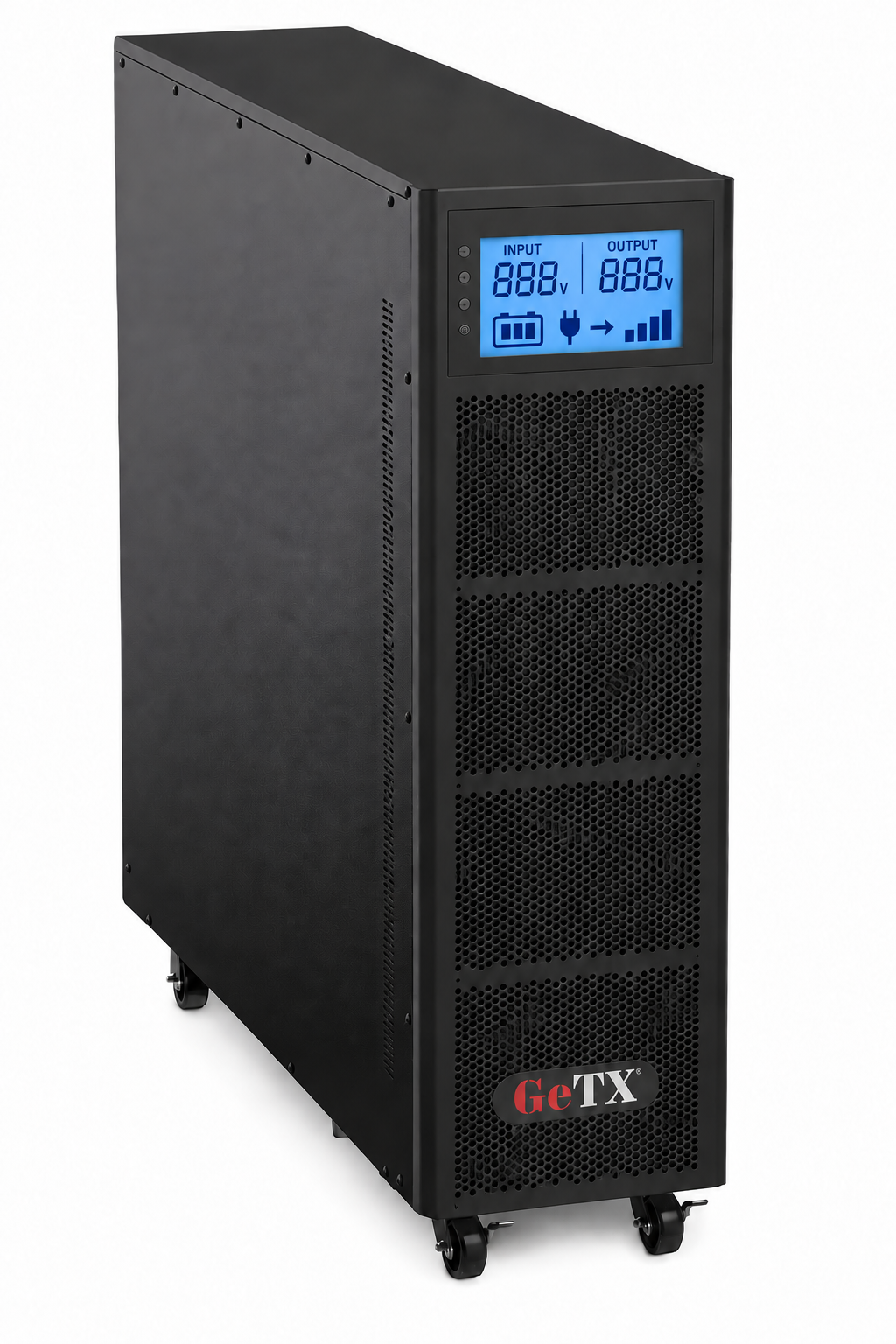

UPS 10KV GETX 3PH online GXK-3-3-10-IE — LCD 888 battery and load indicators
GETX

UPS 10KV GETX 3PH online GXK-3-3-10-IE

In stock SKU: l0286jl8000Type: UPS GETX
7,129,000
Warranty: 1 year
Quantity
Official warrantyAuthorised distributor
Delivery in 48hAll Iraqi provinces
Cash on deliveryPay when it arrives
Technical supportInstallation & maintenance

Dar Al-Nashir (Baghdad, Al-Sina'a Street) is the exclusive distributor of GeTX devices in Iraq.

• Model: GXK-3-3-10-IE
• Capacity: 10kVA / 9kW
• Topology: Online Double Conversion
• Input Voltage: 380/400/415Vac (3Ph + N + PE)
• Input Voltage Range: 305–478Vac (Full Load); 208–478Vac (50% Load)
• Input Frequency: 40–70Hz (50/60Hz Auto-Sensing)
• Power Factor: ≥0.99
• Output Voltage: 380/400/415Vac (3Ph + N + PE)
• Output Voltage Regulation: ±1%
• Output Power Factor: 0.9
• Output Waveform: Pure Sinewave
• Output Frequency: 50/60Hz ±0.1% (Battery Mode)
• Transfer Time: 0ms
• Efficiency: Up to 93.5%
• Battery Voltage: ±120Vdc (Standard)
• Battery: 20 × 12V 9Ah (Standard)
• Display: TFT LCD
• Communication: RS232 / RS485 / Parallel / Dry Contact
• Parallel Operation: Up to 4 units
• Protection: Short Circuit, Overload, Overheat, Overcharge & Overdischarge
• Operating Temperature: 0–40°C
• Humidity: 0–95% RH, Non-condensing
• Noise Level: <55dB
• Safety Standard: IEC/EN62040-1, IEC/EN62477-1
• Dimensions: 250 × 900 × 868 mm (Standard)
UPS 10KV GETX 3PH online GXK-3-3-10-IE PDF Download datasheet
UPS 10KV GETX 3PH online GXK-3-3-10-IE 7,129,000
