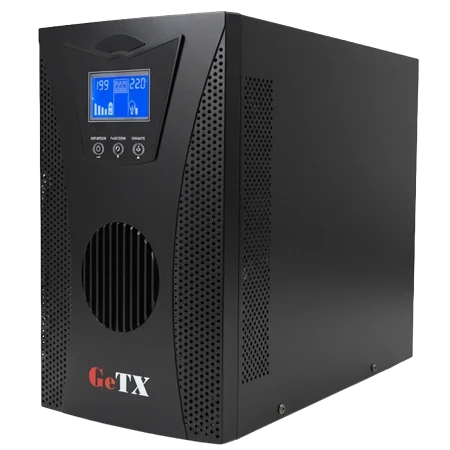

GeTX GXT-3000-CON 3000VA/2400W Online UPS

The GeTX GXT-3000-CON delivers 3000VA/2400W of true online power protection for servers, network equipment, security systems and critical electronics, with pure sine-wave output, zero transfer time and an LCD status display.

• Model: GXT-3000-CON
• Product Type: Online High-Frequency UPS
• Phase: Single-Phase
• Capacity: 3000VA / 2400W
• Topology: True Online Double Conversion
• Input Voltage Range: 110-300VAC at 50% load; 160-300VAC at 100% load
• Input Frequency Range: 40-70Hz
• Input Power Factor: ≥0.97 at 100% load
• Output Voltage: 220VAC ±1% (208/210/230VAC adjustable from the panel)
• Battery-Mode Frequency: 50Hz (60Hz optional) ±0.25Hz
• Output Waveform: Pure Sine Wave
• Harmonic Distortion: ≤3% THD with linear load; ≤6% with nonlinear load
• Transfer Time: 0ms from AC to battery; 4ms inverter to bypass
• Battery Type: Sealed Lead-Acid, 12V 7Ah
• Battery Configuration: 6 × 12V 7Ah
• Charging Current: 1.0A maximum
• Charging Voltage: 110VDC ±1%
• Display: LCD for load, battery capacity, operating mode and fault status
• Communication: Smart RS232 interface
• Protection: Lightning, noise, surge, short-circuit and overload protection
• Operating Environment: 0-40°C; 20-90% humidity, non-condensing
• Noise Level: <50dBA at 1 metre
• Dimensions: 450 × 192 × 335 mm
• Net Weight: 27.7 kg
• Certifications: ISO 9001, ISO 14001 and CE
