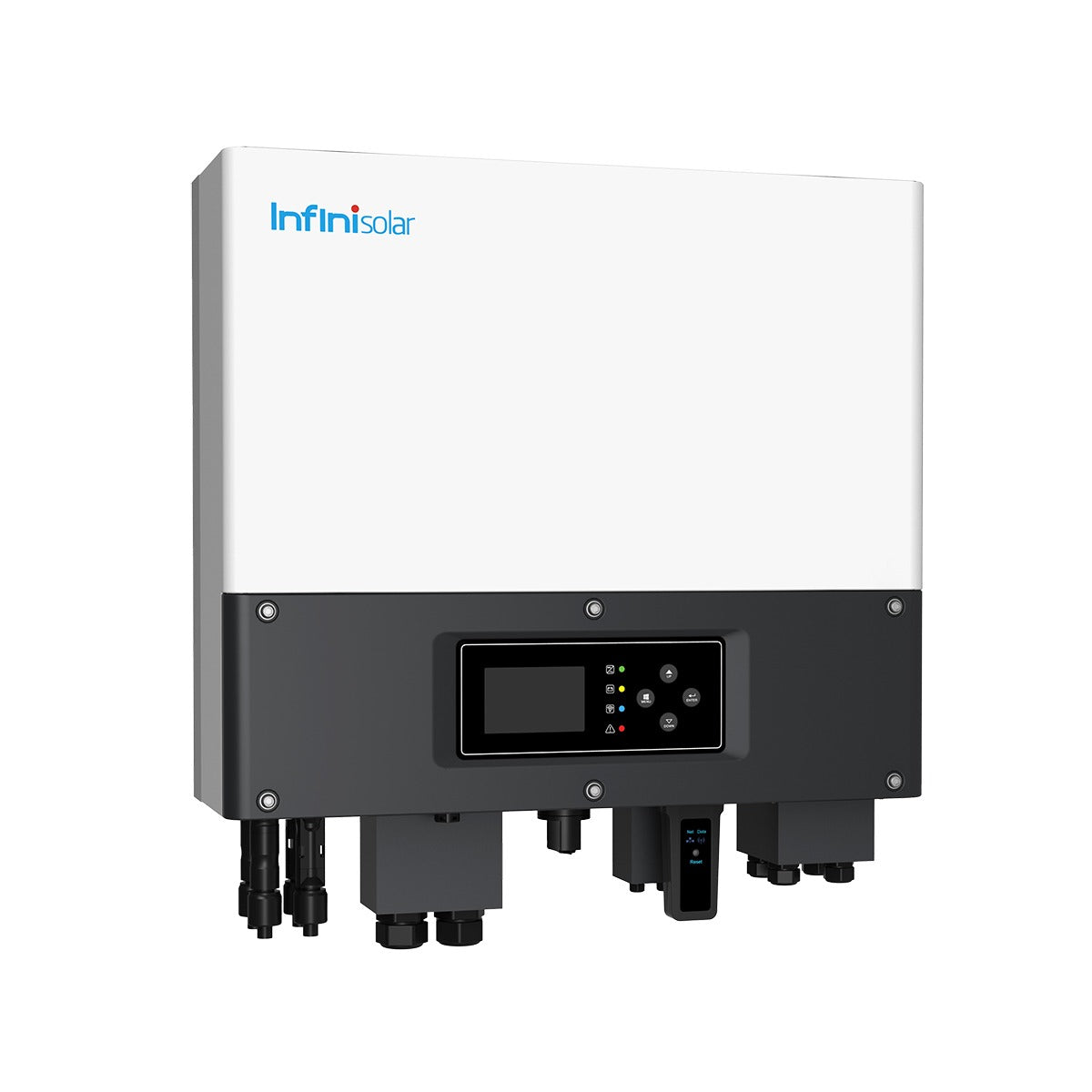

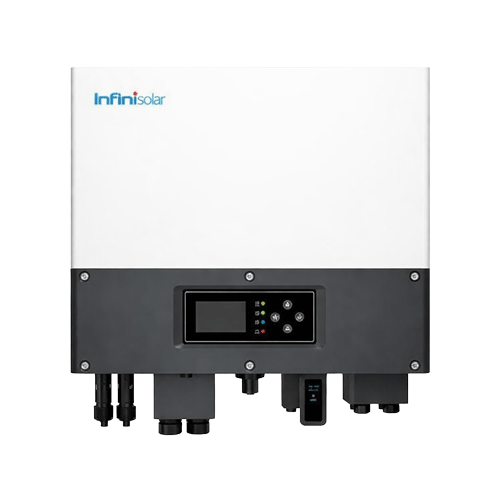

Solar inverter infinisolar 6kw
INFINISOLAR

Solar inverter infinisolar 6kw

In stock SKU: t0563ow7000Type: infinisolar inverter
1,371,000
Warranty: 3 years
Quantity
Official warrantyAuthorised distributor
Delivery in 48hAll Iraqi provinces
Cash on deliveryPay when it arrives
Technical supportInstallation & maintenance
• Model: HM118-6048
• Rated Power: 6000W
• Nominal Battery System Voltage: 48V
• Maximum Recommended DC Power: 7000W
• Nominal DC Operating Voltage: 360V
• Maximum DC Voltage: 500V
• MPPT Voltage Range: 120V–500V
• No. of MPP Trackers: 2
• Strings per MPP Tracker: 1
• Maximum Input Current: 15A / 15A
• Nominal AC Output Power: 6000W
• Nominal Output Voltage / Range: 220/230/240V; 180–280V
• AC Grid Frequency / Range: 50/60Hz; 45–55 / 55–65Hz
• Nominal Output Current: 26A
• Maximum Output Current: 27.2A
• Output Waveform: Pure Sine Wave
• Peak Power: 9000W, 10s
• Total Harmonic Distortion (THDi): <3%
• Power Factor: 1 (0.8 leading … 0.8 lagging adjustable)
• Battery Type: Lead-acid / Lithium Battery
• Battery Voltage Range: 40–60V
• Charging Curve: 3-stage adaptive with maintenance
• Maximum Charging Power: 6000W
• Maximum Charging Current: 125A
• Maximum Efficiency: 97.1%
• Euro Efficiency: 96.5%
• MPPT Efficiency: 99.8%
• Machine Dimension (W*H*D): 420*480*215mm
• Display: LED+LCD
• Communication Interfaces: Wi-Fi / USB / GPRS / RS485
• Ingress Protection Rating: IP65
• Operating Temperature Range: -20°C to +60°C (derating above 45°C)
• Altitude: <3000m
• Net Weight: 30kg
Solar inverter infinisolar 6kw PDF Download datasheet
Solar inverter infinisolar 6kw 1,371,000
