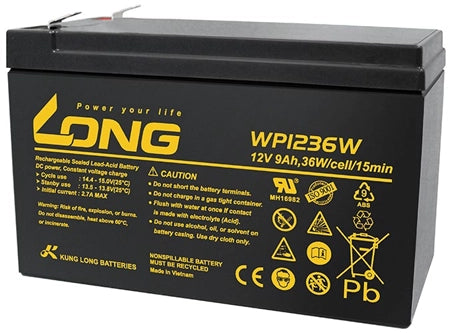

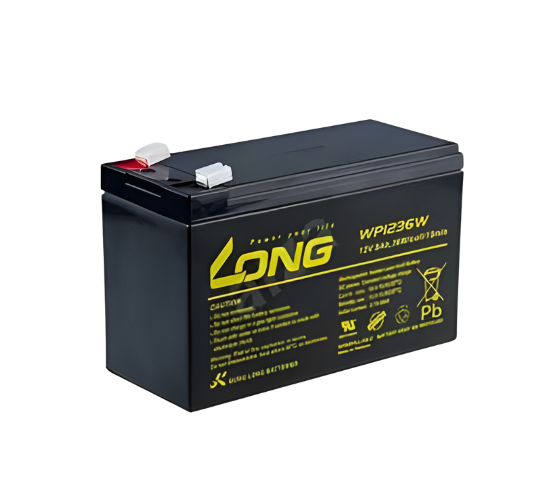

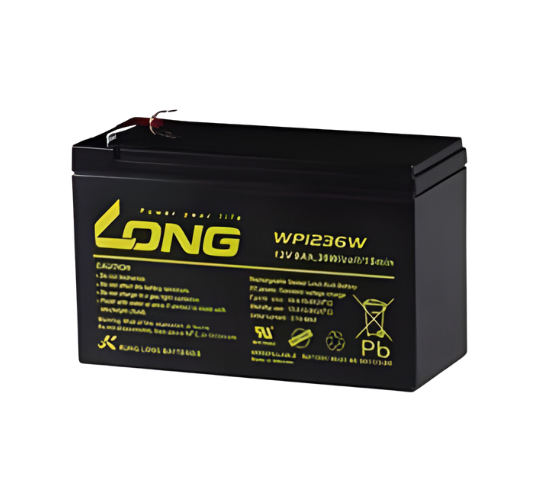

The Long WP1236W is a 12V sealed lead-acid rechargeable battery, ideal for UPS systems, alarm panels, and emergency lighting backup where compact size and reliable standby power are required.
• Model: WP1236W
• Nominal Voltage: 12V
• Nominal Capacity: 7.65Ah (5-Hour Rate)
• Nominal Power: 36W/Cell (15-Minute Rate to 1.60V/Cell)
• Maximum Discharge Current: 135A (5 Seconds)
• Internal Resistance: ~16 mΩ (at 1kHz)
• Terminal: F1 or F2 (Faston Tab 187 / 250)
• Dimensions (L x W x H, Overall Height): 151 x 65 x 94 mm (102 mm)
• Weight: 2.7 kg
• Case Material: ABS UL94 HB
• Design Life: 3–5 Years (EUROBAT, 20°C)
• Operating Temperature: Charge -15–40°C, Discharge -15–50°C, Storage -15–40°C
