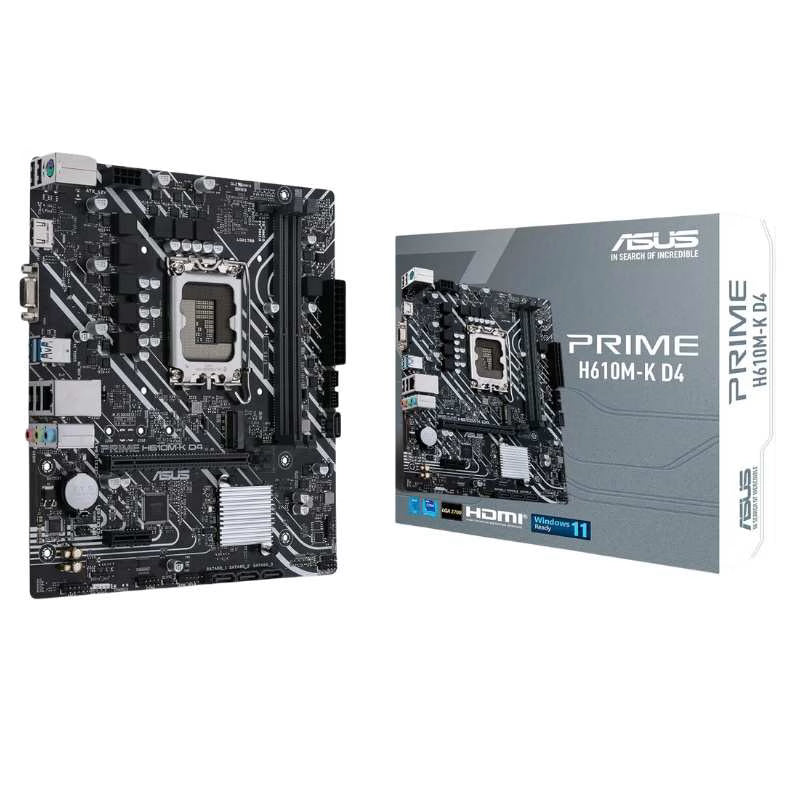

ASUS PRIME H610M-K D4 ARGB Motherboard

Motherboard Specification

• Socket / CPU Support: Intel® Socket LGA1700 (Supports 14th, 13th, and 12th Gen Intel® Core™, Pentium® Gold, and Celeron® Processors)
• Chipset: Intel® H610
• Form Factor: Micro-ATX (9.2 in x 8.0 in / 23.4 cm x 20.3 cm)
• Memory Support: DDR4 (Supports up to DDR4-3200/3000/2933/2800/2666/2400/2133 MHz, Non-ECC, Un-buffered, Dual-Channel, Intel® XMP)

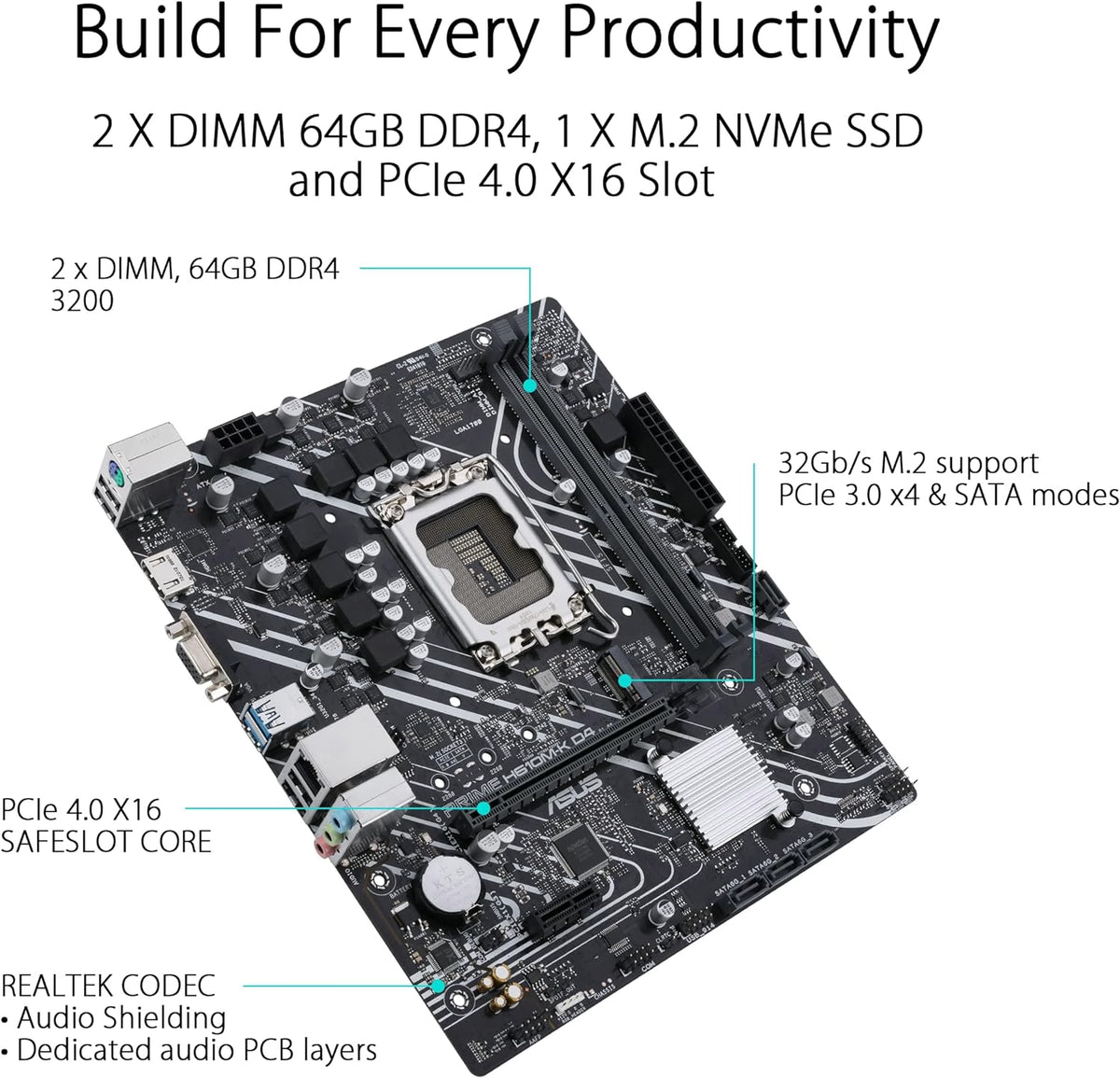

• Memory Slots & Max Capacity: 2x DIMM slots, Up to 64 GB
• PCIe Expansion Slots:
  ◦ 1x PCIe 4.0 x16 slot (SafeSlot Core, supports x16 mode from CPU)
  ◦ 1x PCIe 3.0 x1 slot (from H610 Chipset)
• M.2 Storage Slots:
  ◦ 1x M.2 slot (Key M, type 2242/2260/2280 from H610 Chipset) — supports PCIe 3.0 x4 mode
• SATA Ports: 4x SATA 6Gb/s

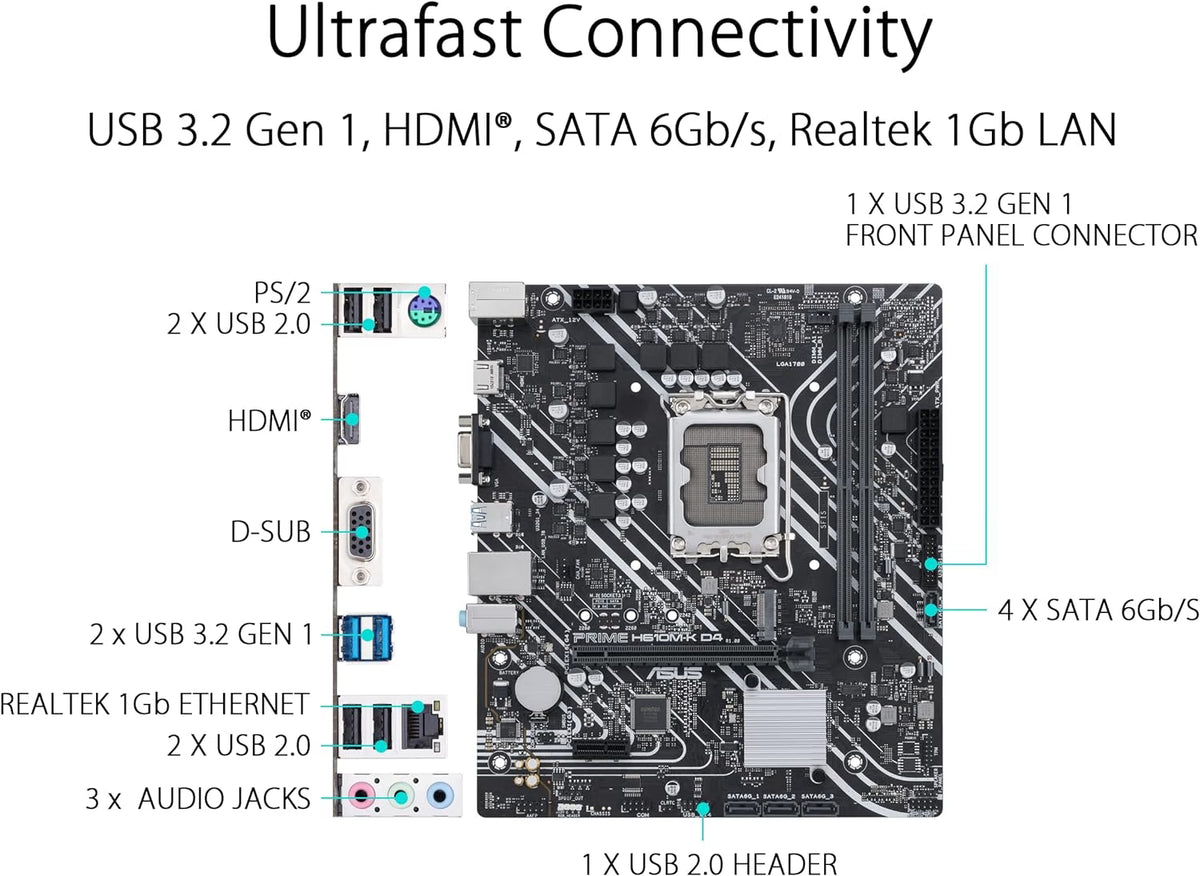

• Rear I/O USB Ports:
  ◦ 2x USB 5Gbps Type-A (USB 3.2 Gen 1)
  ◦ 4x USB 2.0 Type-A
• Internal Front Panel USB Headers:
  ◦ 1x USB 5Gbps header (supports 2 additional USB 5Gbps ports)
  ◦ 1x USB 2.0 header (supports 1 additional USB 2.0 port)
• Networking & Connectivity: Realtek 1Gb Ethernet (No onboard Wi-Fi / Bluetooth)
• Display Outputs:
  ◦ 1x HDMI 2.1 (supports up to 4K @ 60Hz)
• Audio Codec: Realtek 7.1 Surround Sound High Definition Audio CODEC (with 3x Audio jacks)

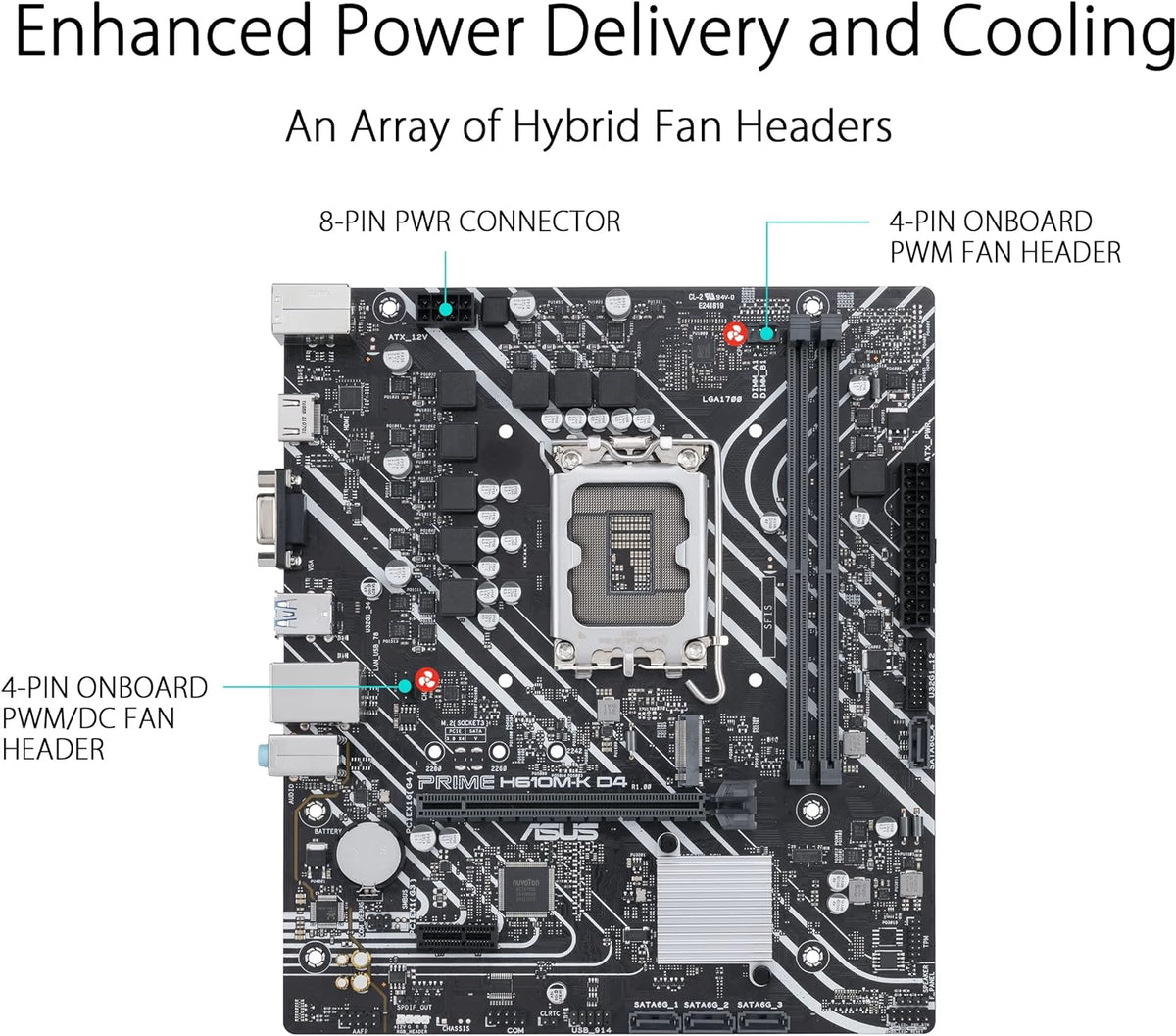

• Power Delivery / Power Connectors: Digi+ VRM, 1x 24-pin Main Power, 1x 8-pin +12V Power
• RGB & Fan Headers:
  ◦ 1x 4-pin CPU Fan header
  ◦ 1x 4-pin Chassis Fan header
  ◦ 2x Addressable Gen 2 headers (ARGB 5V) (Note: No 12V RGB header)
• Special Features: Q-LED Core, ASUS 5X Protection III, PS/2 combo port
